Place of Origin: | China |
---|---|
Brand Name: | OEM |
Certification: | CE, ISO9001 |
Model Number: | 2.7X50MM |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | Packaging As Customer's Request |
Delivery Time: | 45-50 Days After Order Confirmed |
Payment Terms: | T/T Or L/C |
Supply Ability: | 60 Tons Per Month |
Name: | Stainless Steel Plastic Head Nails | Material Grade: | A4 |
---|---|---|---|
Head: | Nylon Round Head | Shank: | Annular Groove |
Wire Diameter: | 2.5mm | Length: | 50mm Including Plastic Head |
Application: | Fixing Fascia And Soffit | Service: | Sample Available |
High Light: | Annular Ring Shank Poly Top Nails,2.7X50MM Poly Top Nails,Fascia Fixing A4 plastic cap nails |

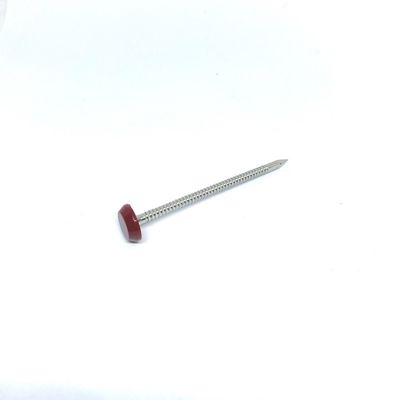

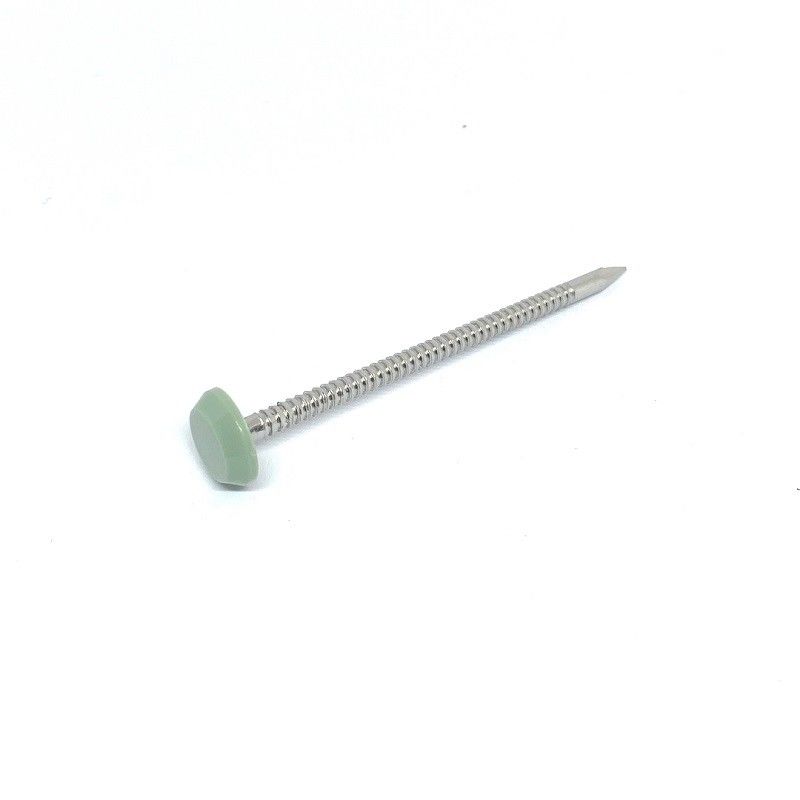

Annular Ring Shank Maintenance Free Poly Head Nail
High strength, High stability
Tough polymer headed pins and nails. Available in A2 and A4 corrosion resistant Stainless Steel, offer a colorfast, cost effective fixing solution for PVCU products.
Quality
The shank of the fixings are formed from corrosion resistant Stainless Steel, ensuring superior performance and exceptional durability in the toughest environments.
Specially defined annular rings enable maximum pull out resistance and the chamfered head ensures a neat finish.
Integrity
With a specially developed tough polymer head the fixings maintain their reliability on site without head failure. Their outstanding quality reduces wastage, saving time and cost.
Tested to ASTM D 638, 790 & 256 for tensile and impact properties. lmpact Test - completed using a 0.73kg mass with an impact area of 22mm.
Versatility
The UV stable color range services the majority of profile variations across leading roofline suppliers.
With a low profile head, applications also include the Caravan, Fencing, Window and Sign Industries.
Independent 1000 hour accelerated tested (equivalent to 10 years exposure) in Northern European sunlight conditions.
Stainless Steel Grade
Nail Specifications
No. | Part No. | Material | OD | Length | Package | Colours |
Available | ||||||
1 | 2.0X25MM | Head: plastic PA6 | 2.15mm | 1 " | 250/box |
White ,Black , Brown , Cherry Oak. Green , Blue Grey…… |
Nail: Stainless steel SUS304(A2), SUS316(A4) |
25mm | |||||
2 | 2.0X30MM | Head: plastic PA6 | 2.15mm | 1-3/16" | 250/box |
White ,Black , Brown , Cherry Oak. Green , Blue ,Grey …… |
Nail: Stainless steel SUS304HC(A2), SUS316HC(A4) |
30mm | |||||
3 | 2.0X40MM | Head: plastic PA6 | 2.15mm | 1-37/64 " | 250/box |
White ,Black , Brown , Cherry Oak. Green , Blue Grey …… |
Nail: Stainless steel SUS304(A2), SUS316(A4) |
40mm | |||||
4 | 2.5X50MM | Head: plastic PA6 | 2.65MM | 2 " | 100/box |
White ,Black , Brown , Cherry Oak. Green , Blue ,Grey …… |
Nail: Stainless steel SUS304(A2), SUS316(A4) |
50mm | |||||
5 | 3.15X40MM | Head: plastic PA6 | 3.35mm | 1-37/64 " | 100/box |
White ,Black , Brown , Cherry Oak. Green , Blue ,Grey …… |
Nail: Stainless steel SUS304HC(A2), SUS316HC(A4) |
40mm | |||||
6 | 3.15X50MM | Head: plastic PA6 | 3.35mm | 2 " | 100/box |
White ,Black , Brown , Cherry Oak. Green , Blue Grey …… |
Nail: Stainless steel SUS304(A2), SUS316(A4) |
50mm | |||||
7 | 3.15X65MM | Head: plastic PA6 | 3.35mm | 2- 9/16 " | 100/box |
White ,Black , Brown , Cherry Oak. Green , Blue Grey …… |
Nail: Stainless steel SUS304(A2), SUS316(A4) |
65mm |
Colours
Package
