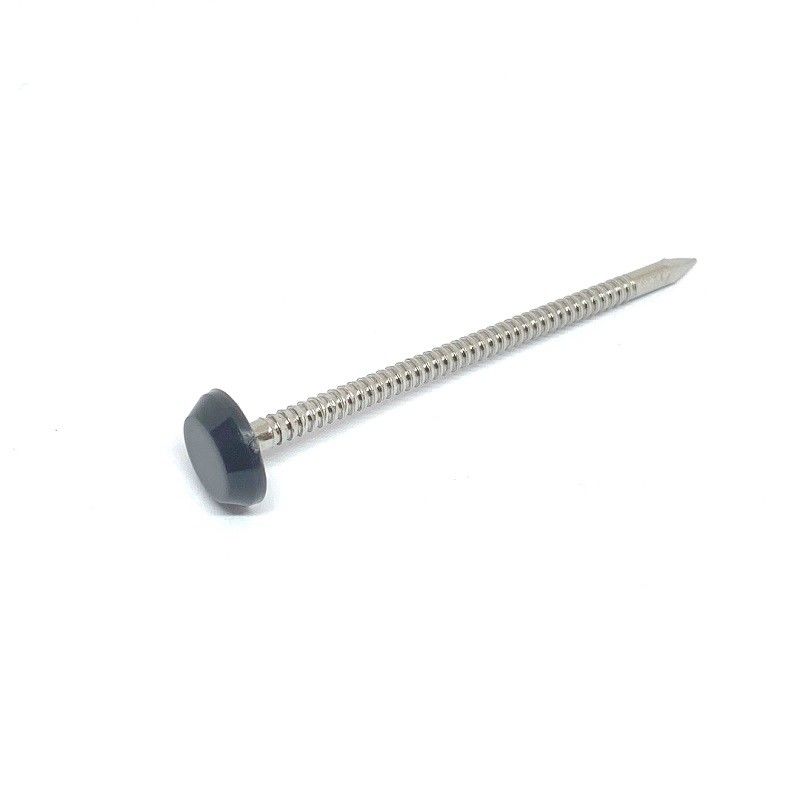

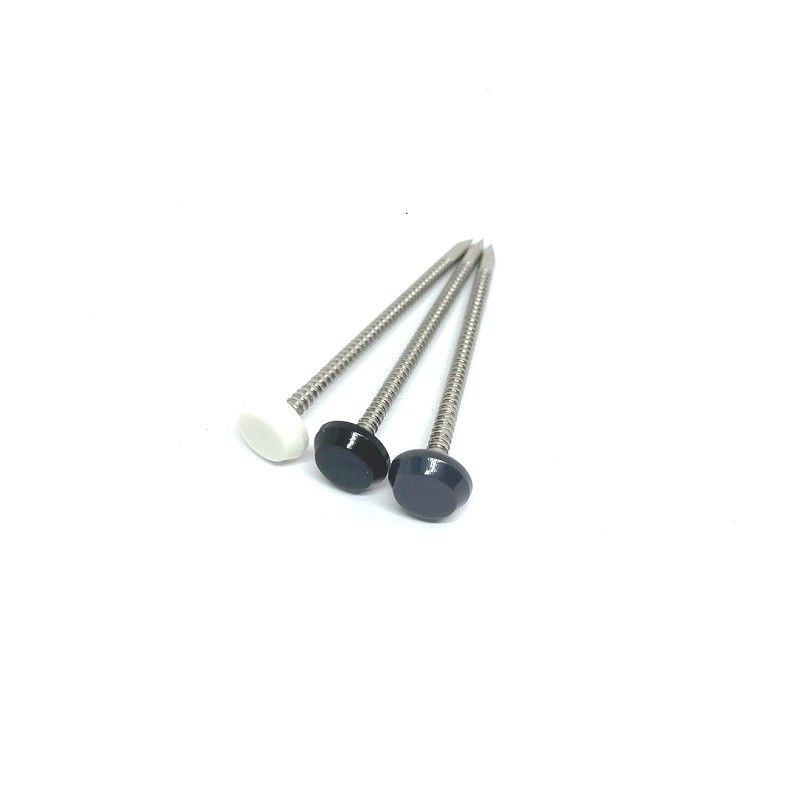

Anti UV Nylon PA6 Head A4 Stainless Steel Pins

Basic Information
Place of Origin: CHINA
Brand Name: OEM
Certification: CE
Model Number: 30MM, 40MM
Minimum Order Quantity: One Pallet
Price: Negotiation
Packaging Details: box , carton and pallet
Delivery Time: 45-50 Days
Payment Terms: T/T OR L/C
Supply Ability: 80 Tons Per Month
Other Name: Plastic Headed Pins Head Material: Nylon PA6
Nail Material: Stainless Steel 316 Length: 30MM And 40MM Including Head
Nail Point: Shark Point Color: White, Black And Grey
Application: Fixing Sample: Available
High Light:

30MM A4 Stainless Steel Pins

,

Nylon PA6 Head Stainless Steel Pins

,

40MM Plastic Headed Pins

Anti - UV Polyer Head A4 Stainless Steel Pins



1. The tough plastic head pins and nails are made by SUS304L/SUS3316 corrosion resistant stainless steel.

    The shatterproof plastic head is mainly made of Nylon PA6 with anti-ultraviolet material, which is ideal for fascia and soffit.

    We have provided a number of regular colors for the plastic head pins and nails. The UV stable head colors could also either be customized          within RAL standard colors or made according to customers’ requirements.

    Specially defined annular ring shank maximizes the pull out resistance and the diamond point ensures an easy fixing and neat finish.



2. Package: 250pcs/box and boxes packed in carton

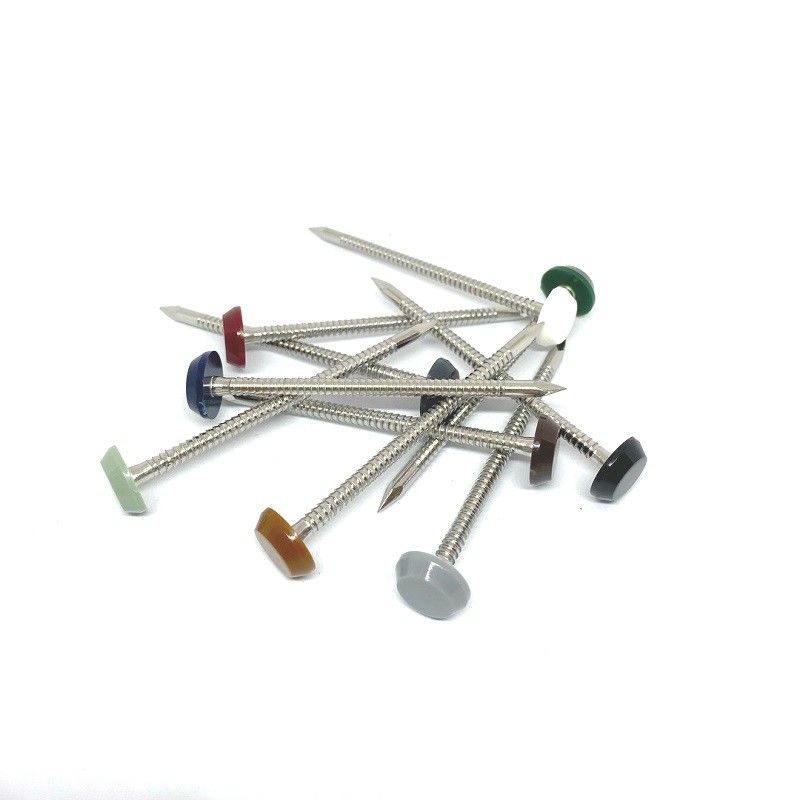

3. Color for Reference:

    White RAL9016

    Grey RAL7016

    Black RAL9005



4. Nail Advantages

   Resistant to weathering with ultraviolet stable colors

   Stainless Steel shank ensures high corrosion resistance

   Resistant to chemical attack

   Low profile head and maximum pull-out resistance

   High strength, High stability



5. Nail Sizes

No. Size Material Shank Diameter Length Package Colors
1 2.0X30MM





Head: Nylon PA6
Nail:

SS316(A4)



2.15mm

+0.1/-0.05

30mm





250/box

RAL9005

RAL9016

RAL7016

RAL8017

RAL8001

RAL7035

RAL8003

RAL9001

RAL9010

etc.

2 2.0X40MM 2.15mm +0.1/-0.05 40mm
3 2.5X50MM 2.7mm +0.1/-0.05 50mm





100/box

4 3.0X50MM 3.2mm +0.1/-0.05 50mm
5 3.0X65MM 3.2mm +0.1/-0.05 65mm
