| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OEM |
| Certification: | CE |
| Model Number: | 2.0X40MM |
| Minimum Order Quantity: | One Pallet |
| Price: | Negotiation |
| Packaging Details: | Box , Carton , Pallet as Customer's Request |
| Delivery Time: | Approx 50 Days After Order Confirmed |
| Payment Terms: | T/T |
| Supply Ability: | 40 Tons Per Month |
| Keywords: | Outside Construction Anti-UV | Material: | SUS316 (A4),SUS304L |
|---|---|---|---|
| Head: | Plastic Head | Shank Type: | Annular Ring Shank |
| Wire Diameter: | 2.0mm | Color: | Matching RAL Numbers |
| Application: | Inside And Outside Construction | Advantage: | Corrosion Resistant |
| High Light: | Anti UV Plastic Head Nails,2.0X40mm Ring Shank Nails,SUS304L Plastic Head Nails |
||

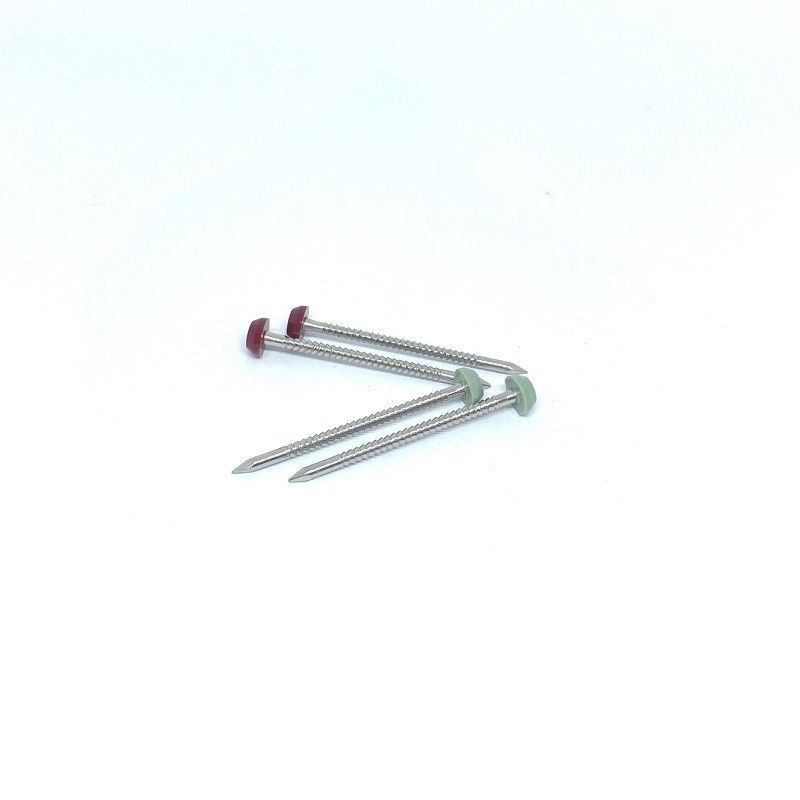

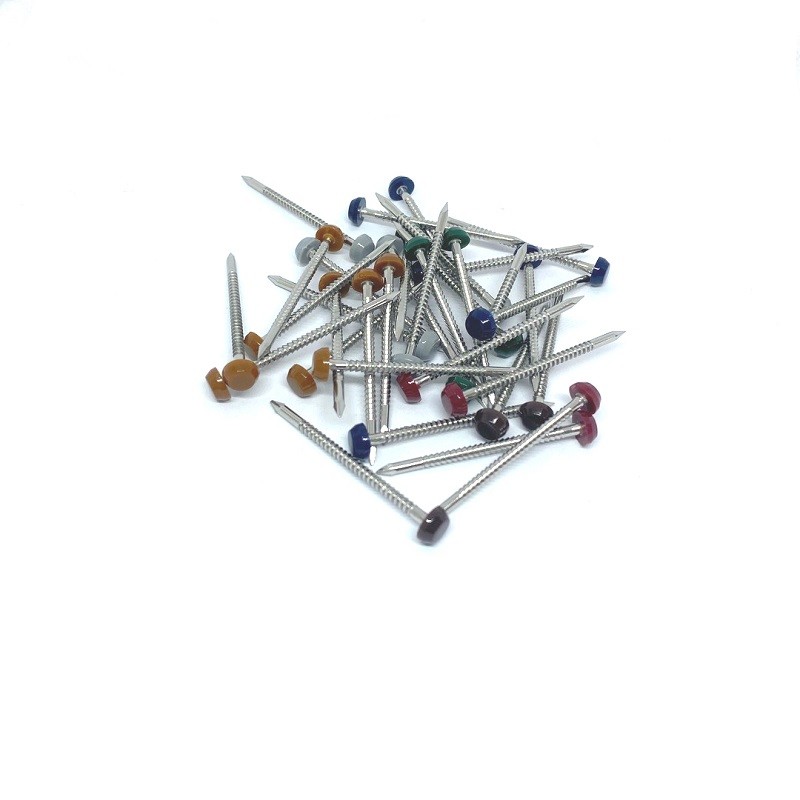

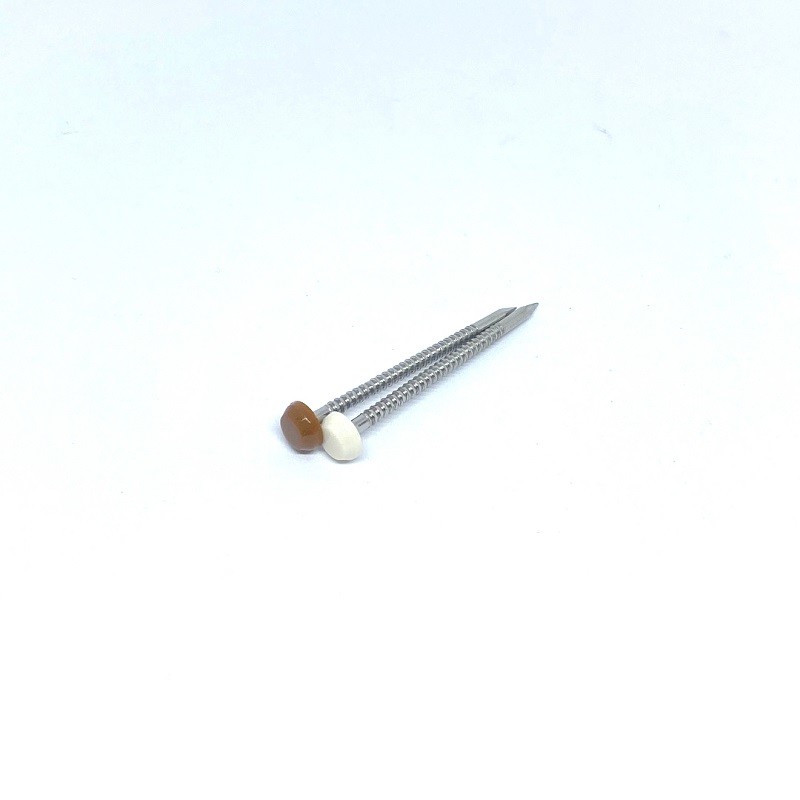

2.0X40mm Outside Construction Anti-UV Polyhead Pin with Ring Shank
The tough plastic head pins and nails are made by SUS304L/SUS3316 corrosion resistant stainless steel. The shatterproof plastic head is mainly made of Nylon PA6 with anti-ultraviolet material, which is ideal for fascia and soffit. We have provided a number of regular colors for the plastic head pins and nails. The UV stable head colors could also either be customized within RAL standard colors or made according to customers’ requirements. Specially defined annular ring shank maximizes the pull out resistance and the diamond point ensures an easy fixing and neat finish.
Stainless Steel Grade
| SUS | Chemical Composition (%) | ||||||||
| C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr≤ | Ni | Mo | other | |
| 304 | 0.08 | 1 | 2 | 0.045 | 0.03 | 18.0-20.0 | 8.0-10 | ||
| 304HC | 0.08 | 1 | 2 | 0.045 | 0.03 | 18.0-20.0 | 8.0-10 | Cu 2-3 | |
| 304L | 0.03 | 1 | 2 | 0.045 | 0.03 | 18.0-20.0 | 8.0-10 | ||
| 316 | 0.08 | 1 | 2 | 0.035 | 0.03 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| 316L | 0.03 | 1 | 2 | 0.035 | 0.03 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| 201CU | 0.12 | 1 | 7.5-10.0 | 0.045 | 0.03 | 13.5-16 | 3.5-5.5 | 0.5 | N≤0.1 |
| D668/204CU | 0.12 | 1 | 11.0-15.0 | 0.045 | 0.03 | 12.5-14.0 | 1.6-2.5 | 0.6 | N≤0.1 |
Nail Specifications
| No. | Part No. | Material | OD | Length | Package | Colours |
| Available | ||||||
| 1 | 2.0X25MM | Head: plastic PA6 | 2.15mm | 1 " | 250/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue Grey…… |
|
Nail: Stainless steel SUS304(A2), SUS316(A4) |
25mm | |||||
| 2 | 2.0X30MM | Head: plastic PA6 | 2.15mm | 1-3/16" | 250/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue ,Grey …… |
|
Nail: Stainless steel SUS304HC(A2), SUS316HC(A4) |
30mm | |||||
| 3 | 2.0X40MM | Head: plastic PA6 | 2.15mm | 1-37/64 " | 250/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue Grey …… |
|
Nail: Stainless steel SUS304(A2), SUS316(A4) |
40mm | |||||
| 4 | 2.5X50MM | Head: plastic PA6 | 2.65MM | 2 " | 100/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue ,Grey …… |
|
Nail: Stainless steel SUS304(A2), SUS316(A4) |
50mm | |||||
| 5 | 3.15X40MM | Head: plastic PA6 | 3.35mm | 1-37/64 " | 100/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue ,Grey …… |
|
Nail: Stainless steel SUS304HC(A2), SUS316HC(A4) |
40mm | |||||
| 6 | 3.15X50MM | Head: plastic PA6 | 3.35mm | 2 " | 100/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue Grey …… |
|
Nail: Stainless steel SUS304(A2), SUS316(A4) |
50mm | |||||
| 7 | 3.15X65MM | Head: plastic PA6 | 3.35mm | 2- 9/16 " | 100/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue Grey …… |
|
Nail: Stainless steel SUS304(A2), SUS316(A4) |
65mm |
Labels
If you require your company name, your part code or barcode printing, these can also be added.
FAQ
Are you a manufacturer?
Yes, we have specialized in this field for about twenty years’ experience.
Could you provide sample?
Yes, we can provide sample.
Can I have a visit to your factory before the order?
Sure, welcome your visit of factory!
Can we mix items in one 20FT container?
Yes.
What is your terms of payment?
30% T/T in advance and balance against copy of B/L, L/C and FOB price available for your product.
