| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OEM |
| Certification: | CE |
| Model Number: | 2.0X30MM |
| Minimum Order Quantity: | 200000pcs per color |
| Price: | Negotiation |
| Packaging Details: | Small Box as Customer's Request |
| Delivery Time: | Approx 50 Days After Order Confirmed |
| Payment Terms: | T/T |
| Supply Ability: | 40 Tons Per Month |
| Name: | Ring Shank Plastic Head Nails | Material: | A4, A2 |
|---|---|---|---|
| Head: | Round Plastic Head | Shank Type: | Ring Shank |
| Wire Diameter: | 2.0mm/1.95mm | Color: | Matching RAL Numbers Or Customer's Requirement |
| Application: | Outside Construction | Advantage: | Corrosion Resistant |
| High Light: | SS A4 Plastic Head Nails,Ring Shank Plastic Head Nails,Stainless Steel A2 Plastic Head Nails |
||

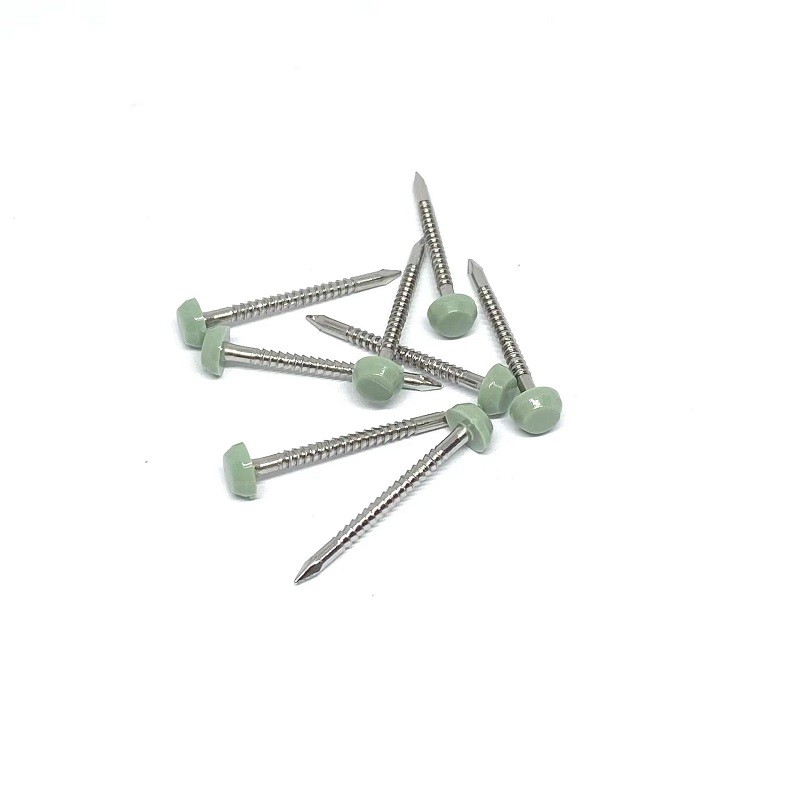

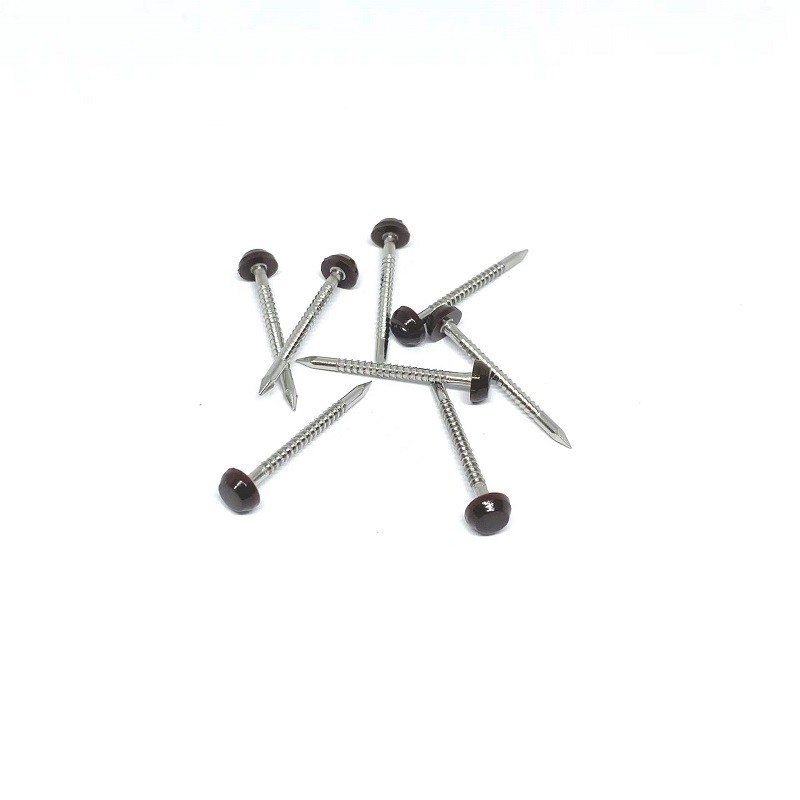

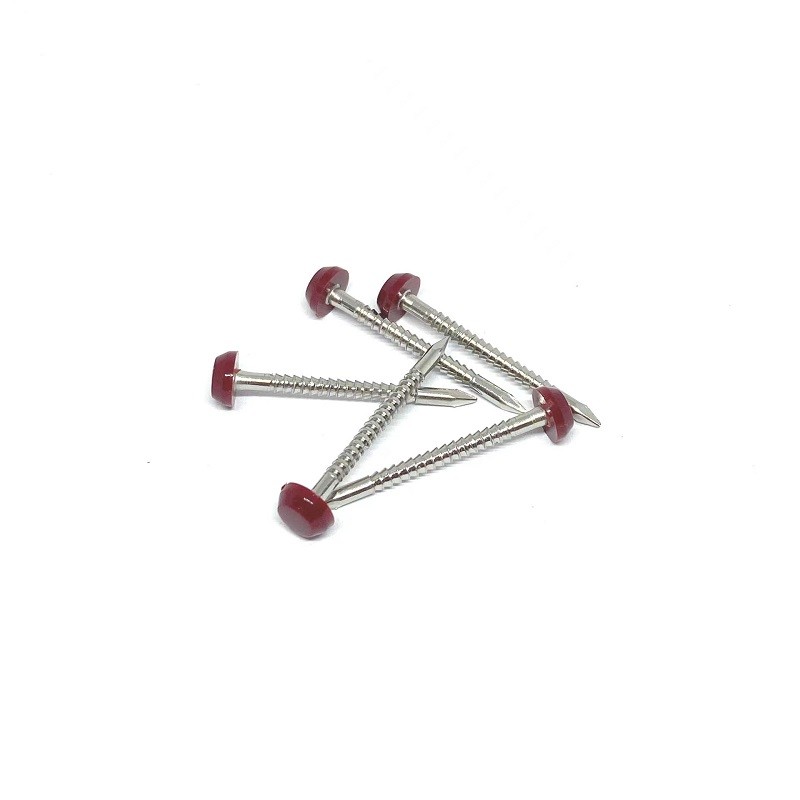

Stainless Steel A2/A4 2.0X30mm Ring Shank Plastic Head Nails
Basic Information
The tough plastic head pins and nails are made by SUS304L/SUS3316 corrosion resistant stainless steel. The shatterproof plastic head is mainly made of Nylon PA6 with anti-ultraviolet material, which is ideal for fascia and soffit. We have provided a number of regular colors for the plastic head pins and nails. The UV stable head colors could also either be customized within RAL standard colors or made according to customers’ requirements. Specially defined annular ring shank maximizes the pull out resistance and the diamond point ensures an easy fixing and neat finish.
Company Introduction
Jiashan Lianchuang Plastic & Hardware Factory was established in 2000, which is specialized in design, manufacture of all kinds of nails with high quality. We have stainless steel nails, Silicon Bronze nails, Aluminum nails and so on. High quality products, attractive prices, excellent services as well as our responsibility are what we would like to provide to welcome our respectable customers from all over the world.
Stainless Steel Grade
| SUS | Chemical Composition (%) | ||||||||
| C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr≤ | Ni | Mo | other | |
| 304 | 0.08 | 1 | 2 | 0.045 | 0.03 | 18.0-20.0 | 8.0-10 | ||
| 304HC | 0.08 | 1 | 2 | 0.045 | 0.03 | 18.0-20.0 | 8.0-10 | Cu 2-3 | |
| 304L | 0.03 | 1 | 2 | 0.045 | 0.03 | 18.0-20.0 | 8.0-10 | ||
| 316 | 0.08 | 1 | 2 | 0.035 | 0.03 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| 316L | 0.03 | 1 | 2 | 0.035 | 0.03 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| 201CU | 0.12 | 1 | 7.5-10.0 | 0.045 | 0.03 | 13.5-16 | 3.5-5.5 | 0.5 | N≤0.1 |
| D668/204CU | 0.12 | 1 | 11.0-15.0 | 0.045 | 0.03 | 12.5-14.0 | 1.6-2.5 | 0.6 | N≤0.1 |
Nail Specifications
| No. | Part No. | Material | OD | Length | Package | Colours |
| Available | ||||||
| 1 | 2.0X25MM | Head: plastic PA6 | 2.15mm | 1 " | 250/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue Grey…… |
|
Nail: Stainless steel SUS304(A2), SUS316(A4) |
25mm | |||||
| 2 | 2.0X30MM | Head: plastic PA6 | 2.15mm | 1-3/16" | 250/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue ,Grey …… |
|
Nail: Stainless steel SUS304HC(A2), SUS316HC(A4) |
30mm | |||||
| 3 | 2.0X40MM | Head: plastic PA6 | 2.15mm | 1-37/64 " | 250/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue Grey …… |
|
Nail: Stainless steel SUS304(A2), SUS316(A4) |
40mm | |||||
| 4 | 2.5X50MM | Head: plastic PA6 | 2.65MM | 2 " | 100/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue ,Grey …… |
|
Nail: Stainless steel SUS304(A2), SUS316(A4) |
50mm | |||||
| 5 | 3.15X40MM | Head: plastic PA6 | 3.35mm | 1-37/64 " | 100/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue ,Grey …… |
|
Nail: Stainless steel SUS304HC(A2), SUS316HC(A4) |
40mm | |||||
| 6 | 3.15X50MM | Head: plastic PA6 | 3.35mm | 2 " | 100/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue Grey …… |
|
Nail: Stainless steel SUS304(A2), SUS316(A4) |
50mm | |||||
| 7 | 3.15X65MM | Head: plastic PA6 | 3.35mm | 2- 9/16 " | 100/box |
White ,Black , Brown ,Cherry Oak. Green ,Blue Grey …… |
|
Nail: Stainless steel SUS304(A2), SUS316(A4) |
65mm |
RAL Color Number For Reference
RAL9005
RAL5011
RAL1011
RAL8017
RAL6009
RAL7016
RAL8003
RAL9010
Etc.
