| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OEM |
| Certification: | CE |
| Model Number: | 2.3X50MM |
| Minimum Order Quantity: | MOQ one pallet |
| Price: | Negotiation |
| Packaging Details: | As Custome's Request |
| Delivery Time: | 45-50 Days after Order Confirmed |
| Payment Terms: | T/T Or L/C |
| Supply Ability: | 60-80 Tons Per Month |
| Product: | Oval Head Nails | Material: | Stainless Steel A2 |
|---|---|---|---|
| Head Type: | Oval Head | Shank: | Ring Shank |
| Wire Diameter: | 2.3mm | Nail Length: | 50mm |
| Apply For: | Wooden Construction | Feature: | Corrosion & Rust Protection |
| High Light: | A2 Stainless Steel Oval Head Nails,Ring Shank Nails Oval Head,2.3mm Diameter Oval Head Nails |
||

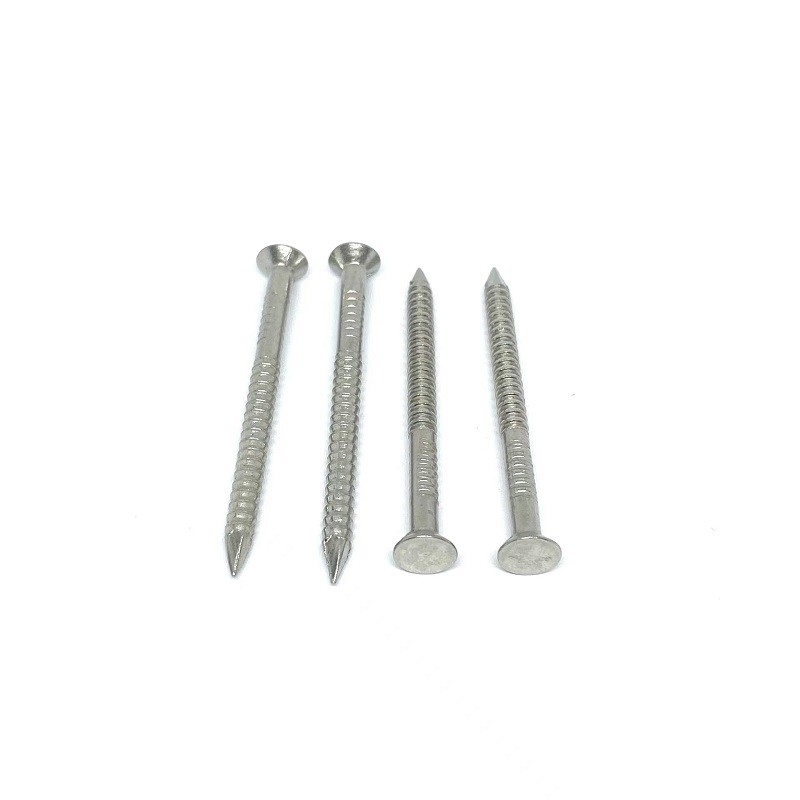

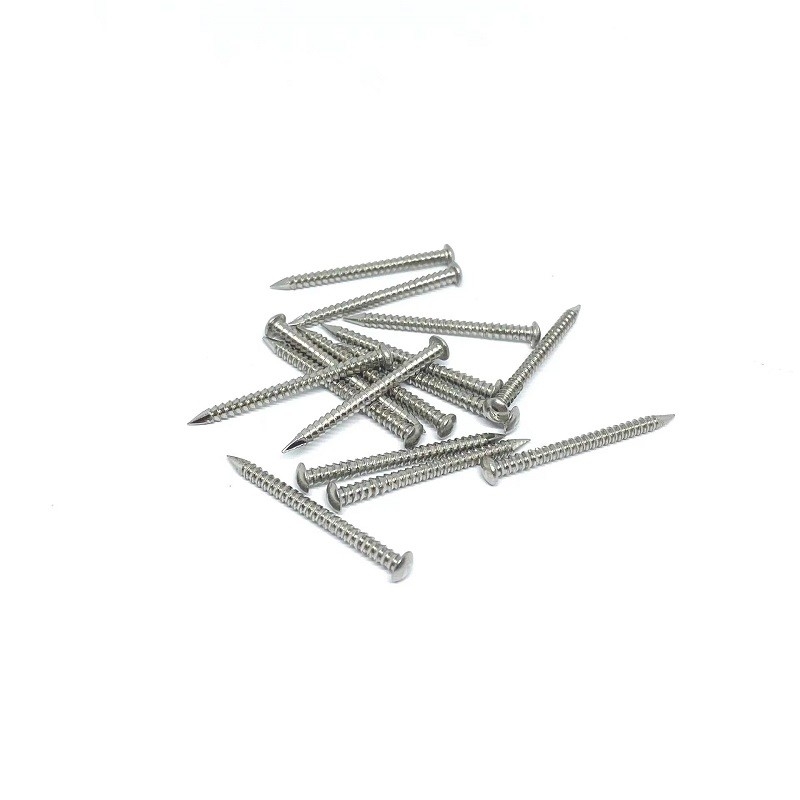

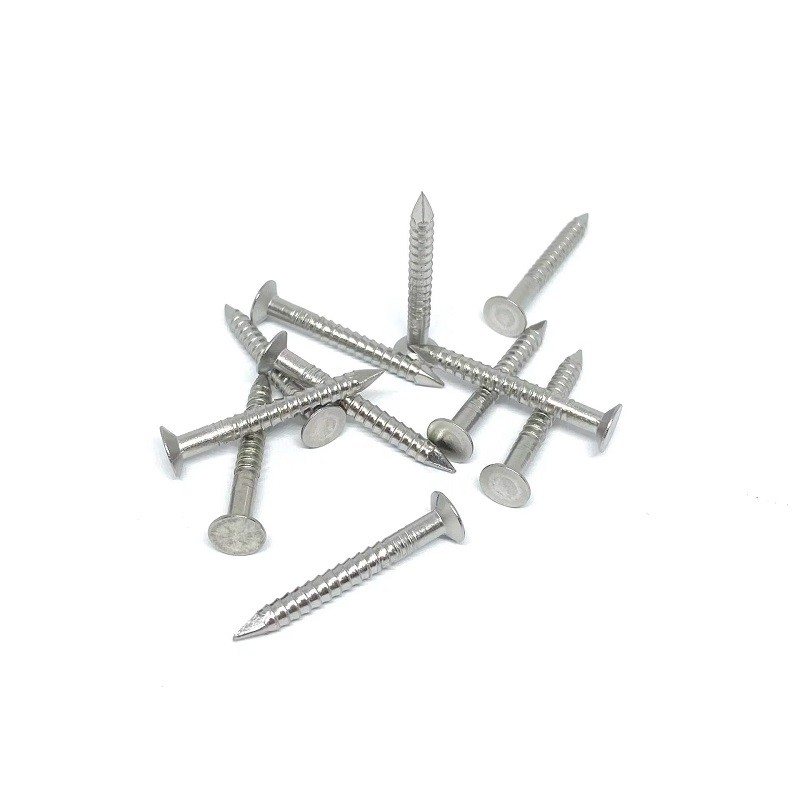

A2 Stainless Steel 2.3mm Diameter Oval Head Ring Shank Nails
1. Product Description
Ring shank nails offer superior holding power over smooth shank nails because the wood fills in the crevasse of the rings and also provide friction to help prevent the nail from backing out over time. A ring shank nail is often used in softer types of wood where splitting is not an issue.
Use 316 Grade Stainless Steel for outdoor applications to avoid nail corrosion. Recommended for ACQ treated lumber, cedar and redwood.
Annular ring shank increases withdrawal resistance to help prevent nail heads from popping up over time.
Diamond point for easier driving.
2. Nail Material
|
SUS |
Chemical Composition (%) |
||||||||
|
C≤ |
Si≤ |
Mn≤ |
P≤ |
S≤ |
Cr≤ |
Ni |
Mo |
other |
|
|
304 |
0.08 |
1.00 |
2.00 |
0.045 |
0.030 |
18.0-20.0 |
8.0-10 |
|
|
|
304HC |
0.08 |
1.00 |
2.00 |
0.045 |
0.030 |
18.0-20.0 |
8.0-10 |
|
Cu 2-3 |
|
304L |
0.03 |
1.00 |
2.00 |
0.045 |
0.030 |
18.0-20.0 |
8.0-10 |
|
|
|
316 |
0.08 |
1.00 |
2.00 |
0.035 |
0.030 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
|
|
316L |
0.03 |
1.00 |
2.00 |
0.035 |
0.030 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
|
|
201CU |
0.12 |
1.00 |
7.5-10.0 |
0.045 |
0.030 |
13.5-16 |
3.5-5.5 |
0.5 |
N≤0.1 |
|
D668/204CU |
0.12 |
1.00 |
11.0-15.0 |
0.045 |
0.030 |
12.5-14.0 |
1.6-2.5 |
0.6 |
N≤0.1 |
3. Specifications
| Wire OD (mm) | 1.5/1.6/1.7/1.9/2.0/2.15/2.5/2.75/2.8/3.0/3.05/3.4/3.75/4.0/4.2/4.5/5.0 |
| Length (mm) | 15/17/19/20/25/32/38/40/45/50/65/70/80/90/100/120/150 |
| Remark | Other sizes produce according to customer's request. |
4. Packages
5. Our Factory
