| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OEM |
| Certification: | CE |
| Model Number: | 1.8X30MM |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | As Custome's Request |
| Delivery Time: | 40-45 Days After Order Confirmed |
| Payment Terms: | T/T Or L/C |
| Supply Ability: | 80 Tons Per Month |
| Product Name: | Oval Head Nails | Material: | Stainless Steel |
|---|---|---|---|
| Head Type: | Oval Head | Shank Type: | Ring Shank |
| Wire Diameter: | 1.8mm | Length: | According To Customer's Request |
| Apply For: | Industry | Advantage: | Corrosion And Rust Protection |
| High Light: | annular ring shank nails,ring shank flooring nails |
||

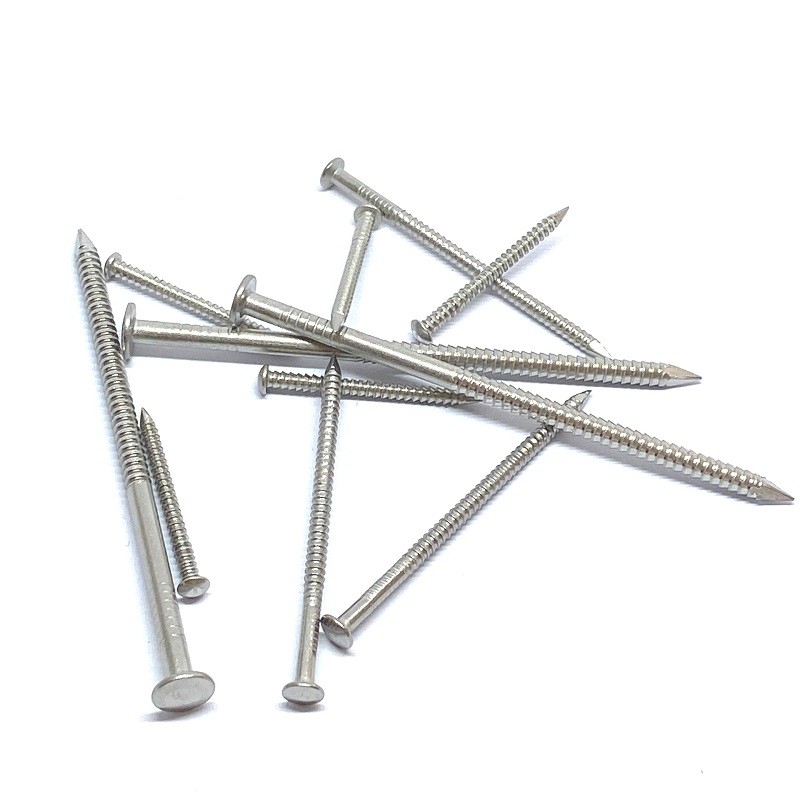

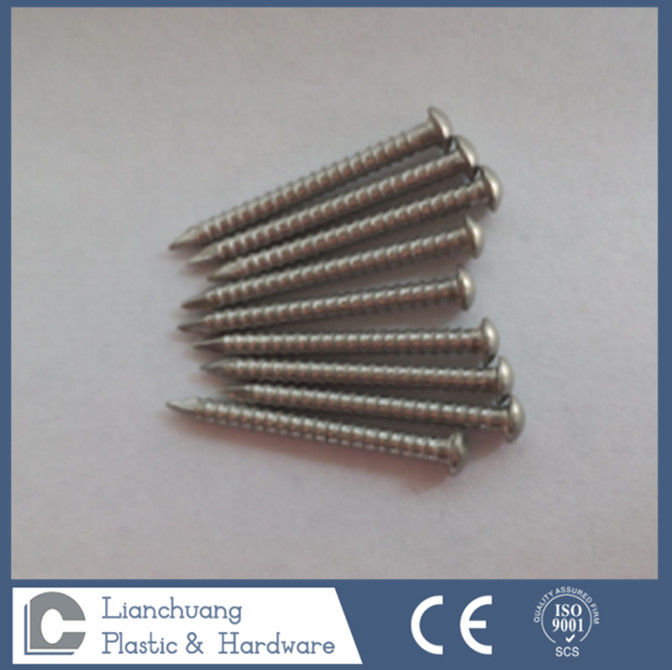

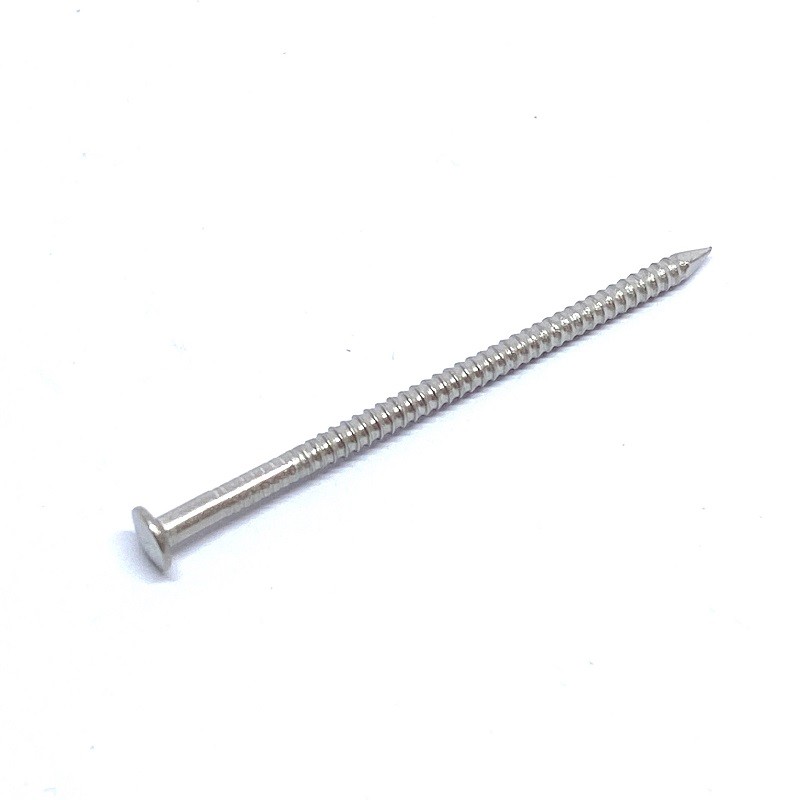

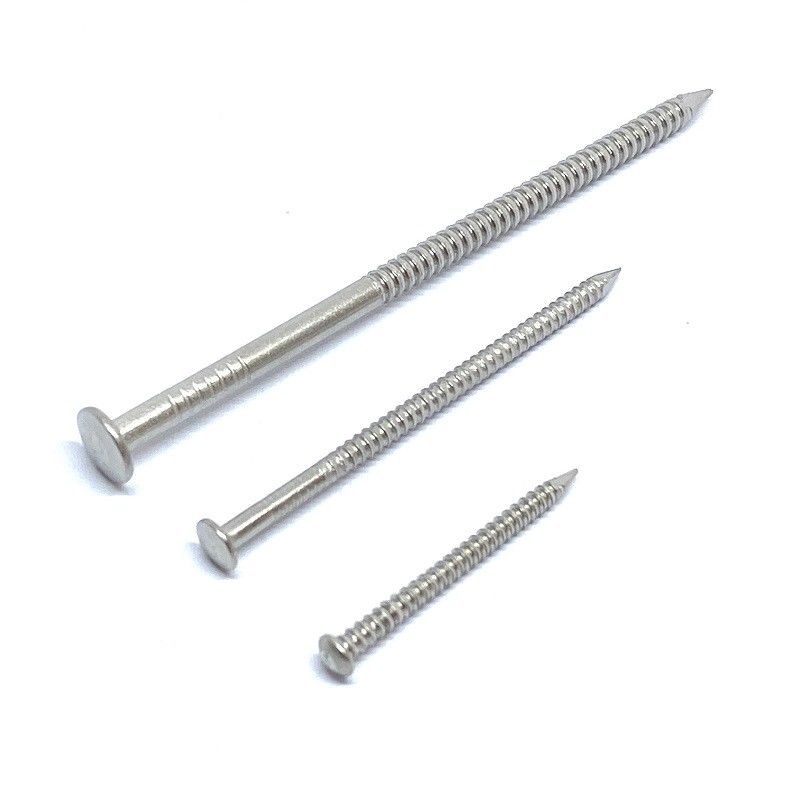

1.8mm Wire Diameter Stainless Steel Oval Head Nails Ring Shank For Wood
1. Product Description
Ring shank nails offer superior holding power over smooth shank nails because the wood fills in the crevasse of the rings and also provide friction to help prevent the nail from backing out over time. A ring shank nail is often used in softer types of wood where splitting is not an issue.
Use 316 Grade Stainless Steel for outdoor applications to avoid nail corrosion and discoloration. Recommended for ACQ treated lumber, cedar and redwood.
Annular ring shank increases withdrawal resistance to help prevent nail heads from popping up over time.
Diamond point for easier driving.
2. Nail Material
|
SUS |
Chemical Composition (%) |
||||||||
|
C≤ |
Si≤ |
Mn≤ |
P≤ |
S≤ |
Cr≤ |
Ni |
Mo |
other |
|
|
304 |
0.08 |
1.00 |
2.00 |
0.045 |
0.030 |
18.0-20.0 |
8.0-10 |
|
|
|
304HC |
0.08 |
1.00 |
2.00 |
0.045 |
0.030 |
18.0-20.0 |
8.0-10 |
|
Cu 2-3 |
|
304L |
0.03 |
1.00 |
2.00 |
0.045 |
0.030 |
18.0-20.0 |
8.0-10 |
|
|
|
316 |
0.08 |
1.00 |
2.00 |
0.035 |
0.030 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
|
|
316L |
0.03 |
1.00 |
2.00 |
0.035 |
0.030 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
|
|
201CU |
0.12 |
1.00 |
7.5-10.0 |
0.045 |
0.030 |
13.5-16 |
3.5-5.5 |
0.5 |
N≤0.1 |
|
D668/204CU |
0.12 |
1.00 |
11.0-15.0 |
0.045 |
0.030 |
12.5-14.0 |
1.6-2.5 |
0.6 |
N≤0.1 |
3. Specifications
| Wire OD (mm) | 1.5/1.6/1.7/1.9/2.0/2.15/2.5/2.75/2.8/3.0/3.05/3.4/3.75/4.0/4.2/4.5/5.0 |
| Length (mm) | 15/17/19/20/25/32/38/40/45/50/65/70/80/90/100/120/150 |
| Remark | Other sizes produce according to customer's request. |
4. Head Type
