Product Name: | Checkered Flat Head Nails | Material: | (A2) |
---|---|---|---|
Head Type: | Checkered Flat Head | Shank: | Ringed |
Diameter: | 5.3mm | Nail Length: | 125mm |
Application: | Wooden Project Fixing | Color: | Natural |
High Light: | annular ring shank nails,ring shank flooring nails |

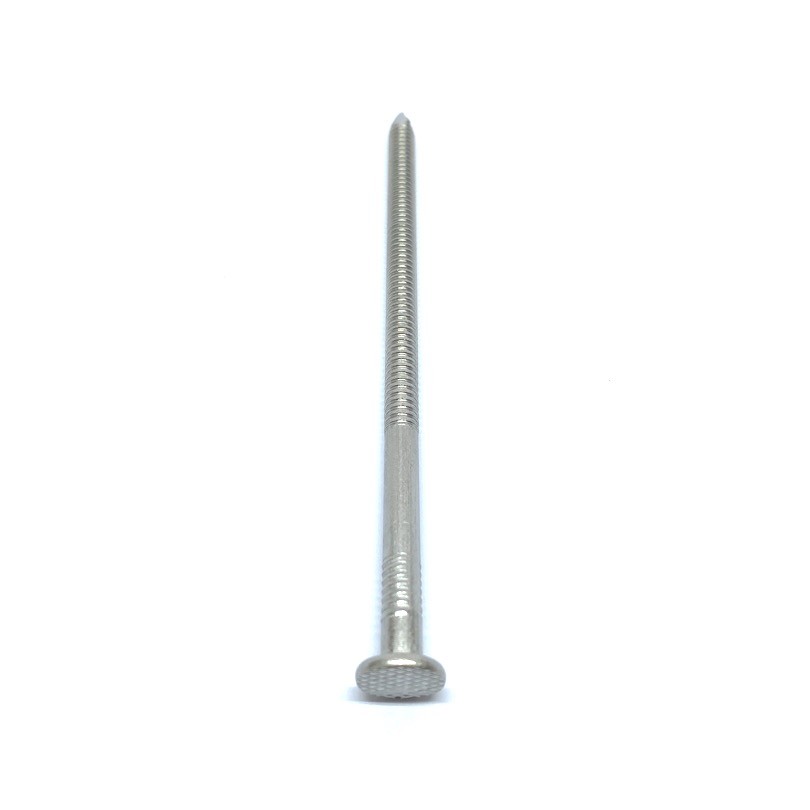

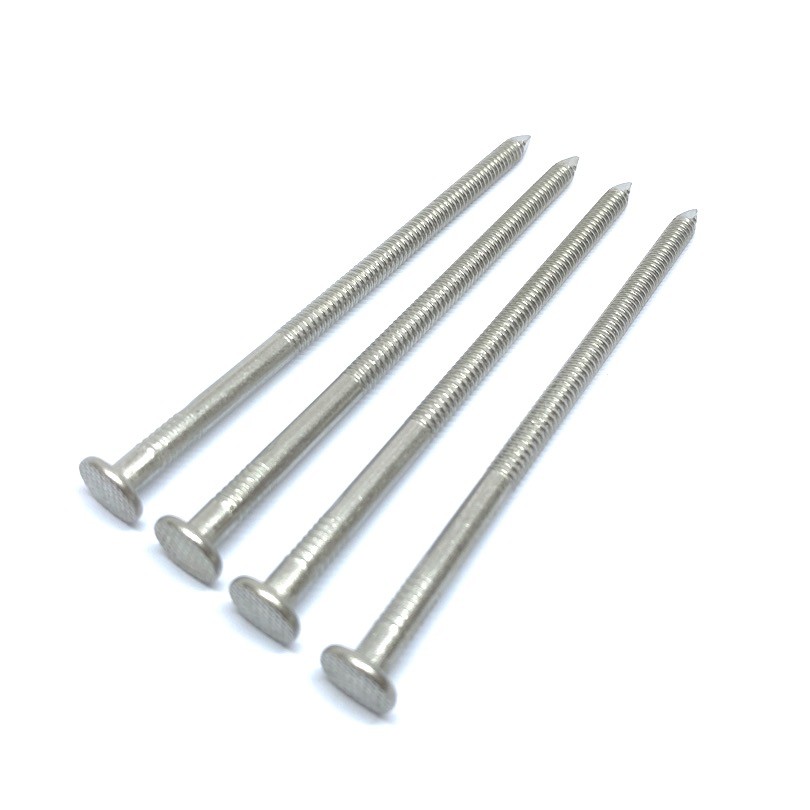

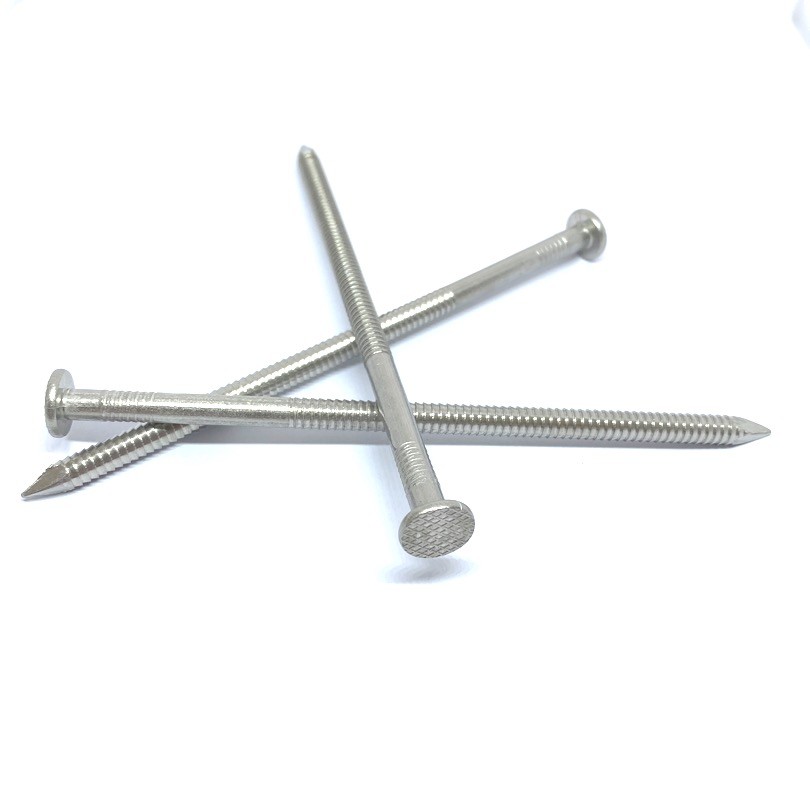

5.3X125MM Stainless Steel A2 Checkered Flat Head Nails Ring Shank For Wood
Ring shank nails offer superior holding power over smooth shank nails because the wood fills in the crevasse of the rings and also provide friction to help prevent the nail from backing out over time. A ring shank nail is often used in softer types of wood where splitting is not an issue.
Nail Material , Stainless Steel Grade
SUS |
Chemical Composition (%) |
||||||||
C≤ |
Si≤ |
Mn≤ |
P≤ |
S≤ |
Cr≤ |
Ni |
Mo |
other |
|
304 |
0.08 |
1.00 |
2.00 |
0.045 |
0.030 |
18.0-20.0 |
8.0-10 |
|
|
304HC |
0.08 |
1.00 |
2.00 |
0.045 |
0.030 |
18.0-20.0 |
8.0-10 |
|
Cu 2-3 |
304L |
0.03 |
1.00 |
2.00 |
0.045 |
0.030 |
18.0-20.0 |
8.0-10 |
|
|
316 |
0.08 |
1.00 |
2.00 |
0.035 |
0.030 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
|
316L |
0.03 |
1.00 |
2.00 |
0.035 |
0.030 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
|
201CU |
0.12 |
1.00 |
7.5-10.0 |
0.045 |
0.030 |
13.5-16 |
3.5-5.5 |
0.5 |
N≤0.1 |
D668/204CU |
0.12 |
1.00 |
11.0-15.0 |
0.045 |
0.030 |
12.5-14.0 |
1.6-2.5 |
0.6 |
N≤0.1 |
Specifications
Wire OD (mm) | 1.5/1.6/1.7/1.9/2.0/2.15/2.5/2.75/2.8/3.0/3.05/3.4/3.75/4.0/4.2/4.5/5.0 |
Length (mm) | 15/17/19/20/25/32/38/40/45/50/65/70/80/90/100/120/150 |
other size produce according to customer's request |
Head Type
Package
Labels
If you require company name, your part code or barcode printing, these can also be added.
